MTL5544 MTL Instruments Repeater Power Supply

MTL5544 MTL Instruments Repeater Power Supply
MTL5544 MTL Instruments Repeater Power Supply

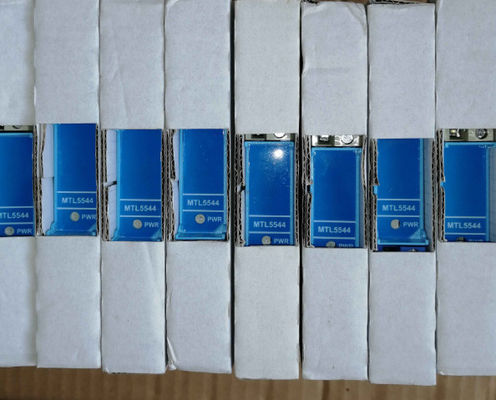

큰 이미지 :  MTL5544 MTL Instruments Repeater Power Supply

제품 상세 정보:
Place of Origin: UK
브랜드 이름: MTL
인증: ROHS
모델 번호: MTL5544
결제 및 배송 조건:
Minimum Order Quantity: 1
가격: Negotiable
Packaging Details: carton
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100+pc+on stock
상세 제품 설명
제조: MTL 마테리아레스티마테드 생산 소요 시간: 1-10 근무일에 보통 선박.
제품 아니.: MTL5544 제품 유형: 중계기 전원 공급기
수로의 수: 2 안전 범위 회로 잔물결: < 50="">
20' C에 있는 전송 정밀도: 15uA보다 더 좋습니다 온도 편류: < 0="">

MTL5544 MTL Instruments Repeater Power Supply

Estimated Lead Time : Usually ships in 1-10 working days.

Manufacturer : MTL Instruments

Product No. : MTL5544

Product type : Repeater Power Supply

2-channel, 4/20mA, HART®, 2- or 3- wire transmitters

The MTLx544 provides fully-floating dc supplies for energising two conventional 2-wire or 3-wire 4/20mA or HART transmitters located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads.

For smart transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current.

Alternatively, the MTLx544S acts as a current sink for a safe-area connection rather than driving a current into the load.

Separately powered current sources, such as 4-wire transmitters,

can be connected but will not support HART communication.

Shipping weight: 1 Kg



The MTLx544 provides fully-floating dc supplies for energising two
conventional 2-wire or 3-wire 4/20mA or HART transmitters located in
a hazardous area, and repeats the current in other circuits to drive two
safe-area loads. For smart transmitters, the unit allows bi-directional
transmission of digital communication signals superimposed on the
4/20mA loop current. Alternatively, the MTLx544S acts as a current
sink for a safe-area connection rather than driving a current into the
load. Separately powered current sources, such as 4-wire transmitters,
can be connected but will not support HART communication
