제품 상세 정보:
결제 및 배송 조건:
|
| 수로의 수: | 1개 | 송신기의 위치: | 구역 0, IIC, T4-6 위험 지역 적당히 공인된 디프 면. 1, A그룹 위험 위치 |
|---|---|---|---|
| 신호 범위 :: | 4 내지 20mA | 아래 / 과범위 :: | 0 내지 24mA |
| 송신기 전압: | 20mA에 있는 16.5V | 20' Ｃ에 있는 전송 정밀도: | 15uA보다 더 좋습니다 |
| 응답 시간: | 50µs 이내에 최종 값의 10 % 이내로 정착 | 지원받은 통신: | 하트 (단말기 1과 2가 단지 Ch 1을 출력했습니다) |

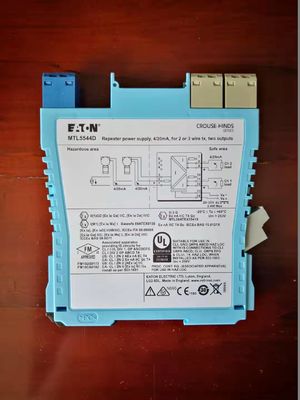

The MTLx544D provides a fully-floating dc supply for energising a
conventional 2- or 3-wire 4/20mA transmitter located in a hazardous
area, and repeats the current in other circuits to drive two safe-area
loads. For HART 2-wire transmitters, the unit allows bi-directional
transmission of digital communication signals superimposed on the
4/20mA loop current. Separately powered current sources, such
as 4-wire transmitters, can be connected but will not support HART
communication.
